WKF型微孔过滤机

WKF Microporous Filter

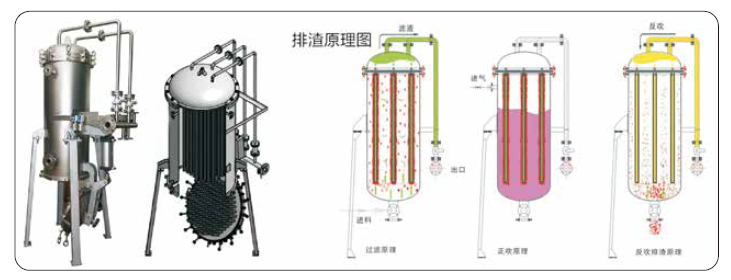

WKF型微孔过滤机是以高分子聚乙烯烧结滤芯或者金属烧结滤芯作为过滤介质，溶液经前期处理后，含悬浮物的废水、废气通过介质，对0.1微米以上的固体颗粒得到有效截留，从而达到去除悬浮物的目的。快捷的气体反吹下渣同时再生过滤管，密闭过滤安全生产，无气体外溢。特殊设计的密封圈，实现了大口径气动排渣底盖的快速闭起，封盖拆卸无需起重装置，清理、维护更加方便快捷。

WKF microporous filter is based on polyethylene sintered filter core or metal sintered filtercore as fi lter medium. Wastewater and waste gas containing suspended substance in solution afterpre-treatment can effectively intercept sol id particles above 0. 1 micron through the medium, so asto achieve the purpose of removing suspended substances. Fast gas back-flushing slag andregeneration of filter tube at the same time, sealed filtration safety production. no gasspillover. The specially designed sealing ring realizes the quick closure of the bottom cover oflarge-caliber pneumatic slag discharge, and the seal ing cover is broken without lifting device, sothe cleaning and maintenance are more convenient and fast.

WKF型微孔过滤机为适应各种物料的特性，设计符合工况要求的滤芯，主要有A-PEA粉末烧结滤芯、B-S31603粉末烧结滤芯、T-钛材粉末烧结滤芯、WC-5层叠加烧结滤芯、PF-四氟粉末烧结滤芯RS-绕丝管滤芯等五种。“万博”研制的微孔滤芯符合GMP要求，未使用粘合剂，无毒、无味、无异物。A-PEA滤芯耐酸碱和多种溶剂，PE滤芯耐温80度，PA滤芯耐温110度，其他金属滤芯耐高温。

WKF microporous fi lter is based on polyethylene sintered filter core or metal sintered filter core asfi lter medium. Wastewater and waste gas containing suspended substance in solution after pre-treatment caneffectively intercept sol id particles above O. 1 micron through the medium, so as to achieve the purpose ofremoving suspended substances. Fast gas back-flushing slag and regeneration of filter tube at the sametime, sealed filtration safety production, no gas spil lover. The special ly designed sealing ring real izesthe quick closure of the bottom cover of large-cal iber pneumatic slag discharge, and the seal ing cover isbroken without lifting device, so the cleaning and maintenance are more convenient and fast. In orderto adapt to the characteristics of various mater ials, WKF microporous filters are designed tomeet the requirements of working conditions. Five kinds of microporous filters, namely A-PEA powder sintered filter, B-S31603 powder sintered filter, T-Titanium powder sinteredfilter, WC-5 stacked sintered filter, PF-tetrafluoro powder sintered filter, RS-wire-wound filter, are developed by Price, which meet the requirements of GMP, do not usebinder and are non-toxic. No odor, no foreign body. A-PEA filter element is acid-alkali resistant and solvent resistant, PE filter element is 80 degrees temperatureresistant, PA filter element is 110 degrees temperature resistant, and other metalfilter elements are high temperature resistant.
