DZF型单层正压过滤器

DZFSingle-layerPositivePressureFilter

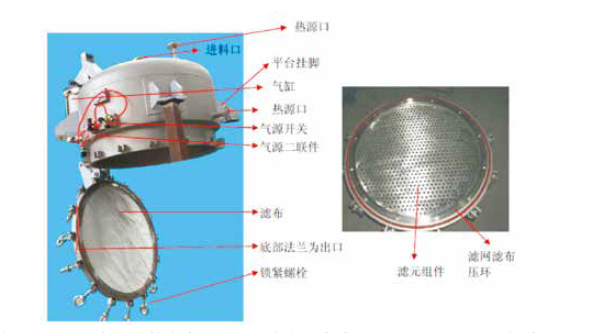

DZF型单层正压过滤器是一种新型、结构简单、操作简便的过滤机，压滤器底部金属网支撑着过滤布(膜)，液体由上而下进料，经过滤元后底部出液，杂质被拦截在滤布(膜)表面。滤材可以根据物料的不同，选择不同的材质和精度。

DZF single-layer positive pressure filter is a new type of filter with simplestructure and easy operation. The bottom metal mesh of the filter supports the filtercloth (membrane). The liquid is fed from top to bottom. After passing through the filterelement, the liquid is discharged from the bottom, and the impurities are intercepted onthe surface of the filter cloth (membrane). Filter materials can be selected according tothe different materials and accuracy.

DZF型单层压滤器具有过滤精度高、滤饼层稳定、容渣量大、可干燥滤饼、卸渣方便，滤材经济等优点。

DZF single-layer filter press has the advantages of high filtration accuracy.stable cake layer, large slag volume, dryable cake, easy slag discharge and economicalfilter material.

DZF型正压过滤器适合过滤量小、流速畅通的物料。常用于滤除活性炭或者悬浮物，更适合过滤固形物为晶体类的物料。普瑞斯根据客户不同工况的需求，设计了如下结构:

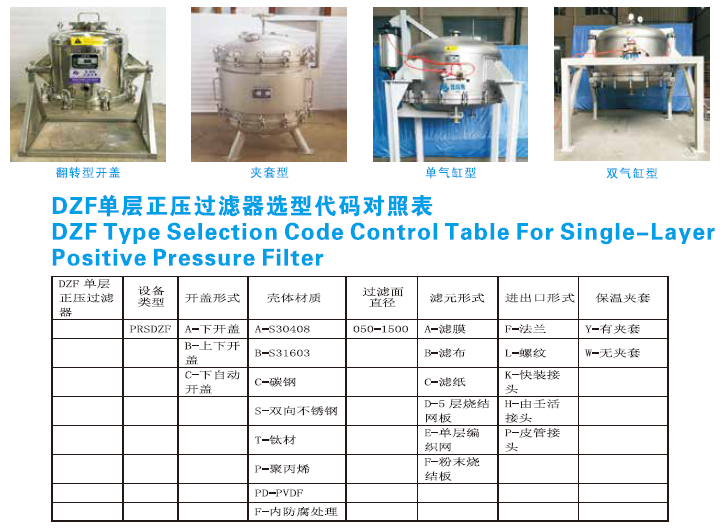

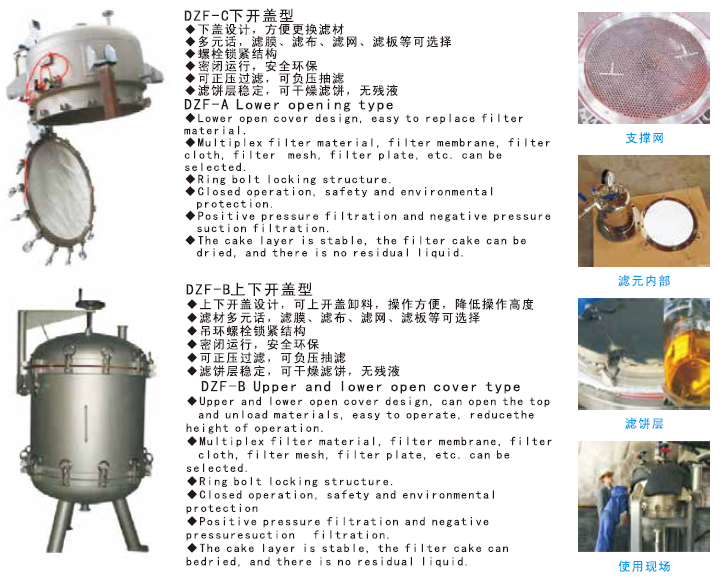

DZF positive pressure filter is suitable for materials with small filtration capacityand smooth flow rate. Usually used to filter activated carbon or suspended solids. moresuitable for filtering solids as crystalline materials. Price has designed the followingstructure according to the needs of customers under different working conditions:
