DBF型多层板框精密过滤器

DBF Precision Multilayer Frame Filter

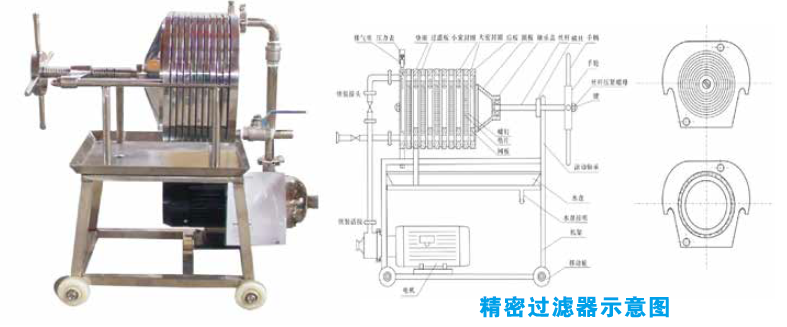

DBF型多层板框精密过滤器是通过进料泵将悬浮液输送进过滤机每个密闭的滤室，在压力作用下，滤液透过滤层及滤(滤膜、滤纸、滤布)，经滤元出液口排出，滤渣则留在滤框内形成滤饼，从而达到固液分离的目的。

DBF multi-layer plate-and-frame precision filter conveys suspension into eachclosed filter chamber of the filter through a feed pump. Under the action of pressure,the filtrate passes through the filter layer and filter cloth (filter membrane, filterpaper, filter cloth), discharges through the outlet of the filter element, and thefilter residue remains in the filter box to form filter cake, thus achieving the purposeof solid-liquid separation.

DBF型多层板框精密过滤器一种新型层叠式过滤机，主要为A-卧式敞开式层叠和B-立式密闭式层叠两种，本体采用S30408和31603优质不锈钢材料制造，内外抛光符合GMP标准，工艺制作精良，性能安全稳定，经久耐用，结构新颖，操作简便，灵活节能，是一种适用性强的多用途过滤机。

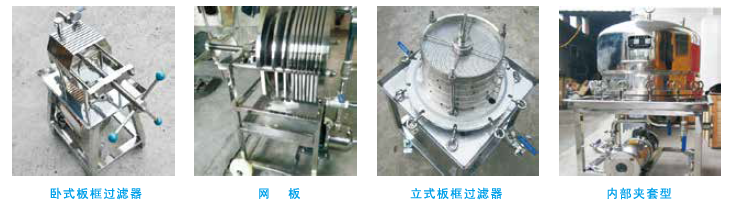

DBF multi-layer plate-frame precision filter is a new type of cascade filter. Itmainly consists of A-horizontal open cascade and B-vertical closed cascade. The body ismade of S30408 and 31603 high-quality stainless steel. The internal and externalpolishing meets GMP standard. The process is excel lent, the performance is safe andstable, durable, the structure is novel, the operation is simple, flexible and energy-saving.It is a versatile filter with strong applicability. Path filter.

“万博”生产的多层板框精密过滤器主要用于各种悬浮液的固液分离，适用范围广。应用于医药、食品、化工、环保、水处理等工业。

The multi-layer plate-frame precision filter produced by "pRS" is mainly used forsolid-liquid separation of various suspensions and has a wide range of applications.It is used in medicine, food, chemical industry, environmental protection, watertreatment and other industries.
